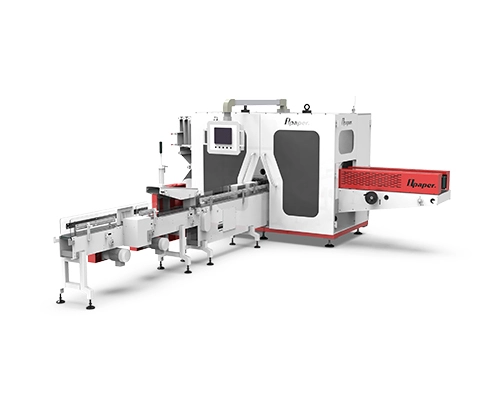

Napkin Tissue Packing Machine OPR-128S

Napkin Tissue Packing Machine OPR-1285 is suitable for automatic plastic bag packaging with soft tissue, facial tissues,napkins, cotton tissues, etc.

It is the patent technology that only Onepaper tissue packaging machine with air shaft design.The bag won't move by left and right when the tissue papers are filled.This can greatly reduce the scrap rate.

However,all other supplier's tissue packaging machine with common steel roll.The bag will move by left and right or up and down when the tissue papers are filled.The bad packaging will be more and more when the bag roll is less and less.


ONEPAPER

Main features of Napkin Tissue Packing Machine OPR-128S

  • Complete the batch number printing (optional), easy-tear line cutting, film unloading, feeding, wrapping, end sealing, corner folding, side sealing, output and other steps in one unit. The structure is compact, the packaging is beautiful, the sealing is firm, and the pressing and hot sealing ensures Product squareness;

  • Using full servo motors and 15" touch screen and motion control system, the human-machine interface display is clearer and easier to operate, with a high degree of automation and intelligence, high speed, and more efficient and humane operation;

  • The automatic material sorting and conveying mechanism is used to facilitate production in conjunction with the automatic production line, which can greatly reduce labor costs;

  • Using the photoelectric eye automatic detection and tracking system, the empty package does not remove the film, which saves packaging materials to the maximum extent. The film is loaded using inflatable materials, and the whole package is fixed point-to-point. The film is fixed first and then cut to eliminate uneven film. Displacement and other phenomena;

  • This kind of facial tissue packing machine has large packaging range, easy adjustment, and rapid conversion between various specifications and sizes;

  • It adopts the flat push type, runs smoothly at high speed, and the packaging area is modular, making it easier to change products;

  • Using spiral cutter technology for perfect cutting;

  • Heat dissipation and heating separation, perfect use of energy consumption, high-speed operation and non-stick packaging;

  • The pushing transmission adopts full servo continuous mode to achieve stability, efficiency and speed;

  • The front-end can be connected to large rotary paper cutters, etc., and the back-end can be connected to soft-drawing wrapping machines, cartoning and packaging lines, etc. for online production.




SPECIFICATIONS OF Napkin Tissue Packing Machine OPR-128S


Model

OPR-128S

Packaging form

Three-dimensional

Packing material

CPP film,PE film,BOPP film

Packing specification

Length

90-200mm

Width

80-110mm

Height

20-100mm

Maximum packing dimensions

L200×W100×H100mm

Packing speed

≤130(bags/minute)

Heating power

6.5KW

Motor power

16.00KW

Total power

22.5KW

Power supply type

Three-phase five-wire 380V 50Hz

Machine noise

≤80dB

Air supply

0.5-0.8 MPa

Air consumption

200-260L/min

Outline dimensions

Main machine

L4050×W1400×H1915mm

Conveying mechanism

L3850×W750×H1420mm

Machine weight

3500Kg
