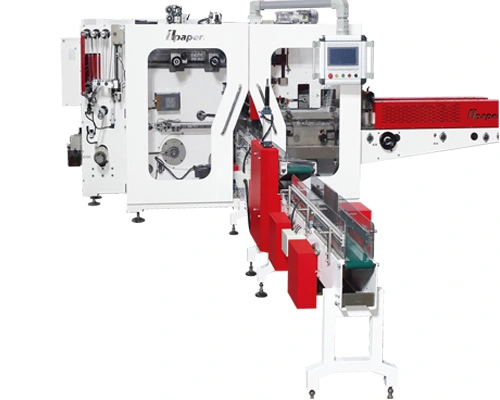

Automatic Tissue Paper Packing Machine OPR-158S

This high speed packaging machine is a device that integrates the steps of easy tearing, film dipping, feeding, packaging, end sealing, corner folding, side sealing, and discharging. Its stable structure has the advantages of durability, and the packaging effect is high in aesthetics and strong in sealing. In addition, the machine is equipped with a full-server motor and motion control system, which is fast and can effectively improve the processing efficiency; its 10" touch screen interface is clearly displayed, which greatly improves the automation and intelligence of processing, and also makes the operation more convenient.


High speed packaging machine adopts the new technology of 14-axis servo motion control + remote Internet of Things independently developed by our company, which allows our engineers to remotely check the problems and alarm positions of the machine for customers, and the positioning accuracy is very high.

ONEPAPER

Specifications of Automatic Tissue Paper Packing Machine OPR-158S

Item/model

OPR-128S

OPR-150S

packing form

Three-dimensional

packing material

CPP, PE, BOPP CPP FILM, PE film, BOPP

packing specification

L:90-180mm,w:80-110mm,H:20-80mm

maximum packing dimensions

L180×W110×H80mm

packing speed

≤128(bags/minute)

≤150(bags/minute)

heating power

6.5KW

motor power

16.00KW

total power

22.5KW

power supply type

Three-phase four-wire 380V 50Hz

air supply

0.5-0.8 MPa

air consumption

200-260L/min

Outline dimensions

main machine

L4050×W1400×H1915mm

conveying mechanism

L3850×W750×H1420mm

machine weight

≈About 3500Kg


Features of Automatic Tissue Paper Packing Machine OPR-158S

01

The common roll wrapping paper on the market is to put the roll paper one by one on the conveyor belt. Our high-speed packaging machine can automatically convey materials through the feeder, which effectively saves labor costs.

02

The automatic ironing machine that comes with the machine automatically irons the conveyed products after they are wrapped in roll paper, and the ironed appearance will be neat and beautiful.

03

The facial tissue packing machine can automatically print the production date and batch number.
