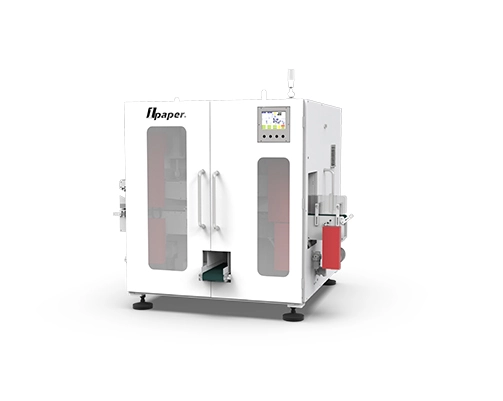

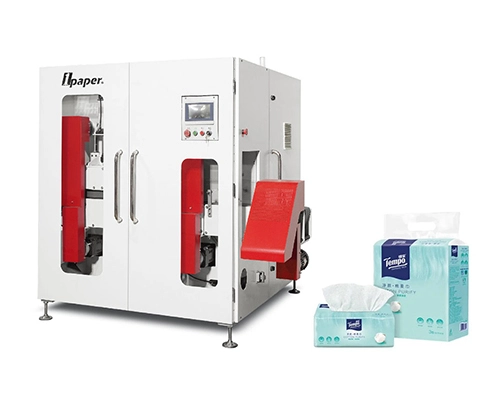

Log Saw Facial Cotton Tissue Cutting Machine

Log Saw Facial Cotton Tissue Cutting Machine is suitable for automatic cutting of cotton tissue,facial tissue, paper towel, roll toilet paper (roll paper with paper core can be customized), etc.


ONEPAPER

Four Innovations of Log Saw Facial Cotton Tissue Cutting Machine

  • Automatic length measurement and equal division without accumulated errors

  • Knife grinding technology from Germany ensures the quality of the blade.

  • Linear guide rail lifting and lowering with convenient operation and maintenance

  • Double frequency new technology, saving power by more than 20%.



Main Performances and Structural Features of Log Saw Facial Cotton Tissue Cutting Machine

  • The production is completed through such procedures as automatic material feeding, length setting/measuring, cutting, finished products output, etc.

  • PLC and man-machine interface system are adopted to flexibly change the knife grinding time, cutting speed, cutting length and the cutting efficiency is high.

  • The frequency conversion speed control and servo tracking control are adopted, and the precise cutting length and flat cutting plane are realized through the optical, electrical and pneumatic integration.

  • As a kind of wipes manufacturing machine, it is provided with safety protection function so that the operation is safe and reliable.

  • The single passage paper cutting machine adopts cutting through upward and downward turning, so that the cutting plane of tissue is more flat, Especially suitable for tissues with height exceeding 120mm.

  • The length of uncut tissue can be automatically measured, and the length of tissue to be cut can be equally divided according to the setting, avoiding length deviation caused due to accumulated error of the first or the last tissue at each row.

  • The designs of removing uneven plane at the front and rear and automatically discharging scrap (especially suitable for soft drawn tissue paper packing machine) can be made according to customer requirements.

  • Linked production with the paper drawing machine, automatic boxing and sealing machine, soft drawn tissue paper packing machine and other equipment can be realized.


MainTechnical Parameters of Log Saw Facial Cotton Tissue Cutting Machine

Item/model

OPQ-358I

(single passage)

OPQ-358 II

(double passage)

Raw material specification

Width 45-110mm adjustable, thickness 25-180mm adjustable

Production capacity

60-200 (cuts/minute)

Cutting length

Can be freely set (within the adjustable range)

Round knife size

Φ610mm

Power

Three-phase four-wire

380V  50Hz  10KW

Three-phase four-wire

380V  50Hz  12KW

Air supply

0.5Mpa-0.8Mpa

Air consumption

100-160L/H

Outline dimensions

L2550×W1520×H2000mm

L2550×W1520×H2000mm

Machine weight

2600Kg

2800Kg

Note: The products of our company may always be updated, and are subject to change without notice (the real products shall prevail).
