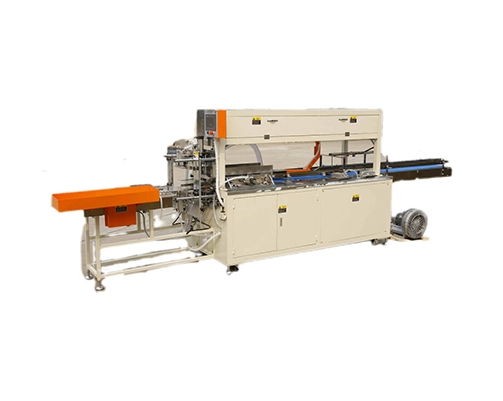

Automatic Single Roll Toilet Paper Packaging Machine is mainly used for packaging independent small rolls of toilet paper rolls, replacing the traditional manual film sealing one by one. It has the advantages of fast speed, neat and beautiful packaging, and saving manpower.
Serial Number | Name | Quantity | Unit | Notes |
1 | Main Unit Section | 1 | Unit | Machine dimensions: 4700mm in length, 1000mm in width, and 1500mm in height |
2 | Single-to-double lane conversion device | 1 | Piece | Customer optional |
3 | Flipping device | 1 | Piece | Customer optional |
1 | Packaging speed (packs/minute) | 8-12 bags/handles per minute | |
2 | Packaging specifications (mm) | ￠90-120mm | ￠90-120mm |
3 | 100-140mm | 100-140mm | |
4 | L(320-650)*W(160*240)*H(90-140)mm | L(320-650)*W(160*240)*H(90-140)mm | |
4 | Packaging form (bags/handle) | 2*3, 2*4, 2*5 | |
5 | Packaging method | Pre-made bag | |
6 | Feeding control | Automatic feeding | |
Multi function: automatic conveying, single head operation, automatic feeding, automatic sealing, automatic countering.
Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient. The machine use the servo motor to push the products to the bags, it causes to locating the products more accurately.
Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyer can be connected with automatic toilet roll packing machine with conveyer. This allows the machine have high capacity and therefore to save the labor and reduce production cost.
Capacity: 8-12 bundling bag/min, 1 labor only to pack.
Suitable for core or coreless toilet roll. The machine cannot proofread color code automatically.
Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily& efficiently, and therefore this makes our machine have long life.
