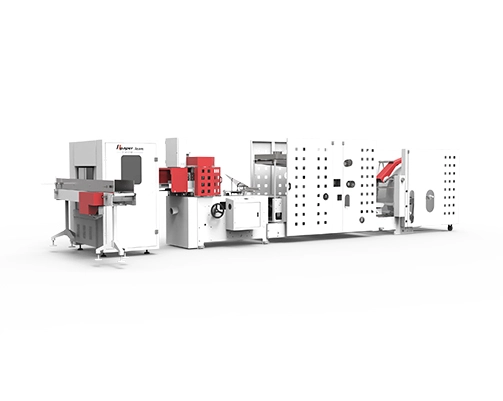

Tissue Paper Napkin Folding Machine OPCJ-SERIES

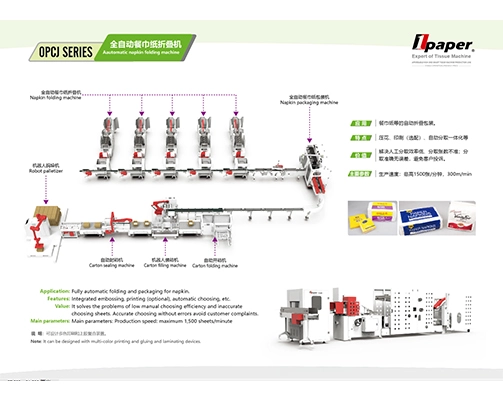

It is folded and formed by the tissue paper napkin folding machine and discharged through the folding wheel. The finished products are stacked according to the set number of sheets through the automatic stacking device. They are rotated and transported to the conveyor belt. The folded napkins are transported by the conveyor belt one by one. Go to the packaging machine to pack it.

Machine design speed: 1200 sheets/min/unit

Machine production speed: 1000 sheets/min/unit


ONEPAPER

Technical Parameters of Tissue Paper Napkin Folding Machine OPCJ-SERIES

  • Base paper weight: 15~18g/m2 wood pulp paper (2 layers);

  • Original paper diameter ≤¢1200mm;

  • Inner hole specifications of base paper core (mm) diameter 76.2

  • Original paper width 330mm

  • Finished product expansion specifications: 330mm×330mm±3mm

  • 1/4 fold 165mm×165±2mm

  • Design speed 1200 sheets/min/set

  • Production speed: 1000 sheets/min/unit

  • Control mode: PLC program control, motion controller control.

  • Machine main motor power (kW) 3KW+0.75KW (main machine + cutting)

  • Compressed air pressure ≥0.5 MPa (need to bring your own)

  • Compressed air consumption ≤1 (M³/min)

  • Machine power supply requirements: three-phase 380v 50Hz

  • Control voltage (V) AC220V+DC24V

  • Paper break detection: Equipped with paper break detection system, the napkin folding machine has a shutdown function when the raw material is exhausted.

  • Safety protection methods: Use protective covers to protect all main transmission components.

  • Machine dimensions: 5.8*1.3*1.7 (length*width*height)

  • Machine weight: about 3.8T/unit

  • Air source control slicing device with independent air storage tank

  • Correction function: Contains 350mm surface width correction device
