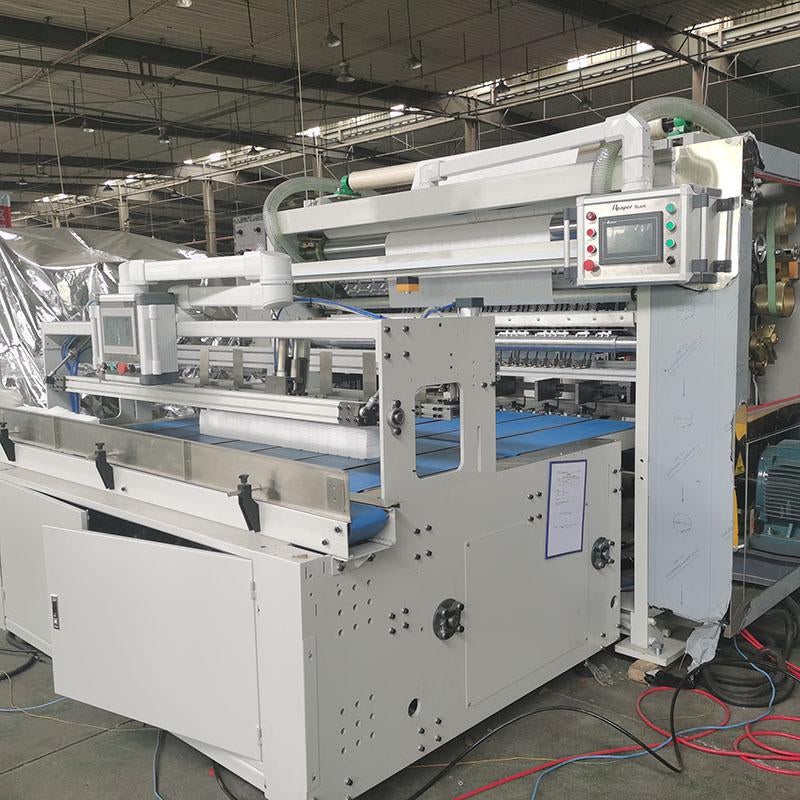

Best Effective Napkin Folding Machine For Drawing Type Napkin Production Factory

Table of Content [Hide]

    Best effective napkin folding machine for drawing type napkin production factory

    Zhejiang Onepaper Smart Equipment Co., Ltd.

    Official wesite: https://onepapergroup.com

    Whatsapp/WeChat: +86-18815151008

    ---------------------


    Napkin folding machine is a type of paper cutting machine which is used to cut paper into pieces. There are many kinds of paper folding machines, such as the napkin folding machine. The napkin folding machine is used to cut paper into pieces according to the pattern, which are then used to make napkins. The napkin folding machine can cut paper into pieces according to the pattern of napkins, such as a square, a rectangle, an oval, or a triangle.


    An automatic facial tissue packing machine must be used on the facial tissue production line to save time and manpower.


    Machine Features:

    Facial tissue making machine working flow: The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and then interfolded into inter overlapped rectangular facial tissue sheets.

    This machine adopts independent servo motor drive and automatic paper tension control automatic marking functings. It features of high speed, nice folding and easy operation.


    Best Effective Napkin Folding Machine For Drawing Type Napkin Production Factory


    1. Can order steel to rubber embossing rolls, pneumatically separated.

    2. Wallboard rack and Machine running stability and extremely good and fast.

    3. Pneumatic jumbo roll loading, pneumatic paper driving, stepless speed additionstment, and web tension control.

    4. Equipped with roots type vacuum pump for stable running of the machine.

    5. Make various products width as requirement.

    6. Equipped with edge embossing unit to keep the plise together.

    7. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.

    8. The web can be threaded on the machine by the two jog buttons, It's more safer and easier to thread the web.


    Specification of Facial Tissue Folding Machine:

    Machine Model: CS-190/6L (Other size to be specified)

    Finished Products Unfolded Size: 95x(120-210)x2mm

    Folding Products Size: 190x(120-210)x2mm

    Raw Material Width: 1260mm

    Raw Material Diameter: 1200mm

    Raw Material Core Diameter: 76.2mm

    Output Capacity (8 hours): 2000-3000kg

    Embossing Unit: Steel to rubber

    Edge Embossing: Steel to steel edge embossing, independent pneumatic regulation

    Slitting Unit: Pneumatic slitting

    Main Servo Moter Power: 5.5kw

    Unwind Frequency Motor Power: 1.5kw (2 units)

    Vacuum System: 18.5 kw Vacuum pump (Taiwan Roots blower)

    Pneumatic System: 3HP air compressor, Min. pressure 5kg/cm2PA (Provider by user themselves)

    Driving System: Timing belt

    Dimension: 5870x2800x2207mm

    Weight: About 5 tons
